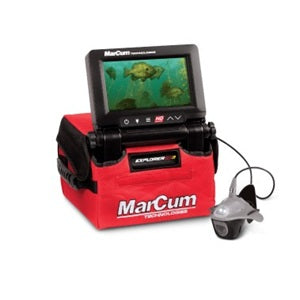

The Explorer HD L is high-end performance, simplified, giving anglers a crystal-clear picture of the underwater world.
- A full 1080p camera that displays in full-resolution on any HD compatible connected TV or monitor, offers a superior viewing experience on the open ice or in the wheelhouse.
- Scan the depths with power to spare, thanks to the MarCum Brute 12V10AH Lithium LiFePO4 battery and charger.
- Combine these features with one of the brightest screens MarCum has ever produced.
- 75 feet of camera cable, and the Explorer HD L delivers the simplest, yet most advanced underwater viewing experience ever devised.
IN THE BOX
| BATTERY |
Rechargeable 12-volt 10-amp Lithium LiFePO4 Battery |
| CHARGER |
3-Stage Automatic Charger |
| STORAGE |
Deluxe Padded Red Soft Pack |
| ACCESSORIES |
Snow/Sun Shield
Down-view Stabilizer Fin |
| WARRANTY |
One Year System Warranty |
TECH SPECS
| MODEL NO. |
Explorer HDL |
| DISPLAY |
7″ Widescreen Flat Panel Hi-Res Color LCD 3x Brighter Pixels |
| Resolution |
800 x 480 Pixels |
| Camera |
1920 x 1080p Sensor Dark Water LED Lighting 90° Field of View Color Kill |
| Cable |
75 ft. Camera Cable |
| On Screen Display |
N/A |
| Additional Features |
- Adjustable Brightness, Contrast, and Sharpness
- Switchable Color & B/W
- HD Video Out Snow
- Sun shield Camera
- Cable Management Storage
|
BATTERY
| MODEL NO. |
LP41210 |
| BATTERY TYPE |
Lithium Iron Phosphate (LiFePO4) |
| VOLTAGE |
12.8 Vd.c. |
| AMP. HOURS |
10 AH |
| WATT-HOURS |
128 |
| MAX CHARGE CURRENT |
10-amps |
| PEAK DISCHARGE |
10-amps |
| TERMINALS |
Standard F2 Spade Terminals (6.4mm or 0.25” wide) |
| LIFECYCLES |
2000 Full charge cycles |
| OPERATING TEMPERATURE |
-29°C to +49°C |
| CHARGING TEMPERATURE |
0°C to +45°C (Do not charge a frozen battery) |
| BMS PROTECTION |
Circuitry designed to prevent the battery from operating outside its safe operating levels. Includes: over-current & over-voltage protection, regulates operation during high & low temperatures, balanced charging, and short circuit protection.
|
| ESTIMATED RUNTIME* |
11 Hours Depending on Conditions |
| SIZE |
5-7/8″ x 2-1/2″ x 3-5/8″ Replaces Standard Lead Acid Battery |
| WEIGHT |
2 lbs. 11oz. |
*Runtime estimates are based on power usage with factory default settings. Changes in user settings like screen brightness can have a major impact on power draw and therefore runtimes. MarCum Technologies offer these estimates to aid in determining the size battery you need to meet your use case.
WEIGHT & DIMS
| PHYSICAL DIMENSIONS |
10″ x 10″ x 7.5″ |
| WEIGHT |
13.0 lbs. |
