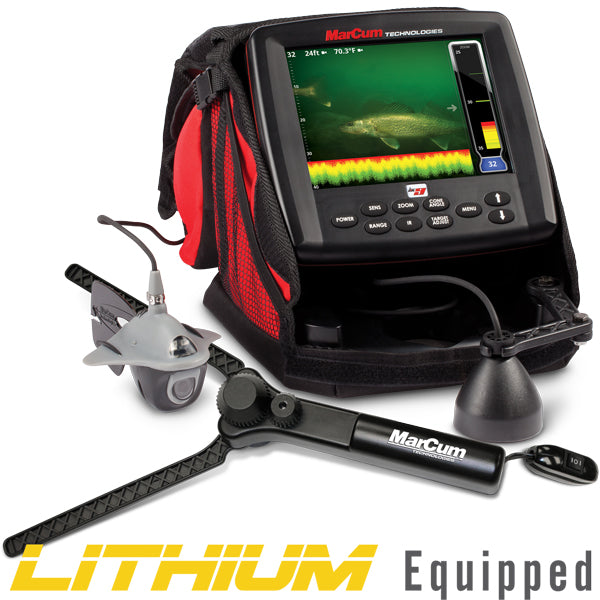

Decades of advanced sonar engineering meet wicked underwater wizardry; virtual reality joins aquatic reality, and both live to tell their stories—all on the screen of the same high-powered device. The minds at MarCum Technologies unleash the new LX-9L LiFePO4—a totally dynamic sonar / underwater viewing experience you’ve got to see to believe. Now powered by the new Lithium LiFePO4 12volt 10-amp hour battery. Giving you more power to fish longer, and a 3-pound weight savings to make it lighter when you are out hole hopping. With a panoramic 8-inch split-screen enabled LCD, you can play the interactive ice fishing game in sonar and live action modes, simultaneously.
IN THE BOX
| BATTERY |
Rechargeable 12-volt 10-amp Lithium LiFePo4 Battery |
| CHARGER |
3-amp Hour Rapid-Charge Battery Charger |
| STORAGE |
Deluxe Padded Red Soft Pack
Camera Pack |
| CAMERA EXTRAS |
Remote Camera Panner
microSD Card |
| SCREEN PROTECTION |
Snow Shield Faceplate |
| WARRANTY |
Two Year System Warranty |
WEIGHT & DIMS
| PHYSICAL DIMENSIONS |
11.25″ x 11.25″ x 11.25″ |
| WEIGHT |
10.5 lbs. |
TECH SPECS
| MODEL NO. |
LX-9L |
| DISPLAY |
8″ Flat Panel Color LCD
4 Color Palette Options |
| POWER |
4800 Watts Peak to Peak
Output Power |
| CONE ANGLE |
Dual Beam 8/20 Degree
Ice Transducer |
| TARGET SEPARATION |
Down to 1/2-Inch |
| INTERFERENCE REJECTION |
Patented 12 Step
Interference Rejection |
| ZOOM |
Automatic Bottom Lock
Selectable Zoom Windows –
5′, 10′, 20′, 40′
Patented Infinitely Adjustable Zoom
(Zoom anywhere throughout the water column) |
| RESOLUTION |
800 x 600 Pixels |
| CABLE |
8 ft. Transducer Cable |
| CAMERA |
Color or Black/White Switchable
1/3″ Sensor with a .01 Lux
Dark Water LED Lighting
75 ft. Camera Cable |
| ON SCREEN DISPLAY |
(HUD) Heads-Up Display
Camera/Sonar Overlay Technology
All Camera Functions
Any Combination of Vertical,
Vertical Zoom, Flasher, Graph &
Graph Zoom Split Screen |
| ADDITIONAL FEATURES |
300′ Dynamic Depth Capability,
Infinite Scale from 10′ and Deeper in 1′ Increments
Upgradeable Firmware
Bottom Enhance Capability
Exclusive Dynamic Depth/Range
Exclusive Sonar Footprint Display
Adjustable Scroll/Ping Rate
Target Adjust Image Magnifier
Adjustable Night-Vision Backlight
Video Playback On-Screen |
BATTERY
| MODEL NO. |
LP41210 |
| BATTERY TYPE |
Lithium Iron Phosphate (LiFePO4) |
| VOLTAGE |
12.8 Vd.c. |
| AMP. HOURS |
10 AH |
| WATT-HOURS |
128 |
| MAX CHARGE CURRENT |
10-amps |
| PEAK DISCHARGE |
10-amps |
| TERMINALS |
Standard F2 Spade Terminals (6.4mm or 0.25” wide) |
| LIFECYCLES |
2000 Full charge cycles |
| OPERATING TEMPERATURE |
-29°C to +49°C |
| CHARGING TEMPERATURE |
0°C to +45°C (Do not charge a frozen battery) |
| BMS PROTECTION |
Circuitry designed to prevent the battery from operating outside its safe operating levels. Includes: over-current & over-voltage protection, regulates operation during high & low temperatures, balanced charging, and short circuit protection.
|
| ESTIMATED RUNTIME* |
13 Hours Depending on Conditions |
| SIZE |
5-7/8″ x 2-1/2″ x 3-5/8″ Replaces Standard Lead Acid Battery |
| WEIGHT |
2 lbs. 11oz. |
*Runtime estimates are based on power usage with factory default settings. Changes in user settings like screen brightness can have a major impact on power draw and therefore runtimes. MarCum Technologies offer these estimates to aid in determining the size battery you need to meet your use case.
